CNC-X-WE Rotary

  • Sale
  • Regular price $300.00
Shipping calculated at checkout.

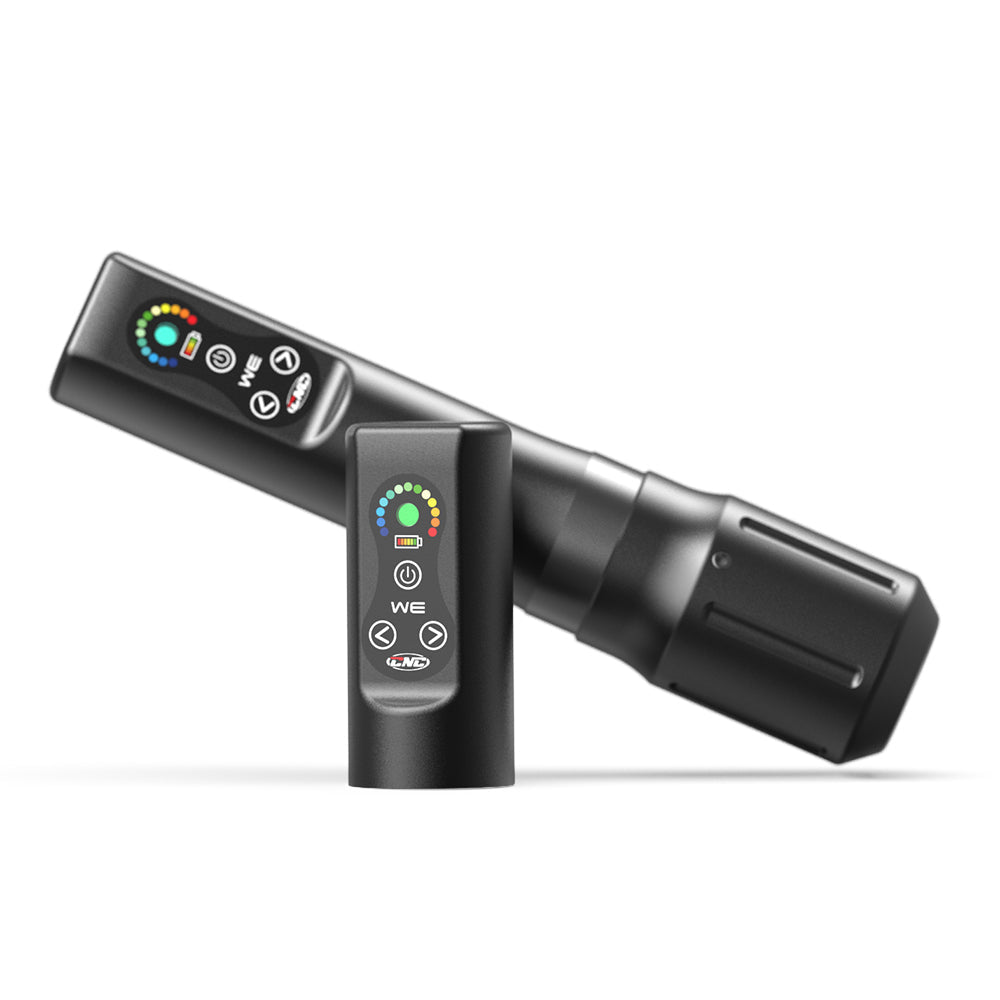

The wireless tattoo machine X-WE designed by CNC is the first generation wireless tattoo machine. Packaged within two power bolts that you can use alternately to maintain continuous work. The wireless tattoo pen motor used by CNC WE is the shortest motor drive designed by CNC technical department, and we abandon the direct drive system so the CNC-WE can do more on various types of tattoo effects. A complete wireless tattoo machine CNC WE Kit for various tattoo styles demand

 Key Features

  • 2 Wireless Power Cell
  • Custom Germany coreless motor with dual-shaft
  • Replaceable stroke cam
  • Minimal vibrations and low noise
  • 13 level voltage output
  • Ergonomic grip design
  • The Power connection Type-C
  • Accepts all major cartridge brands
  • Grip diameter:31.5φ
  • Stroke Cam: 3.5mm
  • Length: 141mm with power pack
  • Weight : 176g with a power pack, Power weight: 37.4g

Package

  •  1 Machine
  • 2 Power bolt
  • 1 Professional manual
  • 1 Type-C cord.

CNC-WE Wireless world

The wireless tattoo machine: CNC-WE is the first 100% wireless tattoo pen by CNC tattoo supply. It inherits the stability and durability of the CNC Q series. It makes wireless work easier and breaks through the limitations of space. It’s time to cut the annoying cord off and embrace this wireless tattoo machine.

CNC WE wireless tattoo pen adopts a modular (3 independent modules) design that makes it easier for your routine sterilization, usage, and maintenance.


CNC-M-WE wireless tattoo machine

2 Pcs
Wireless Powerbolts

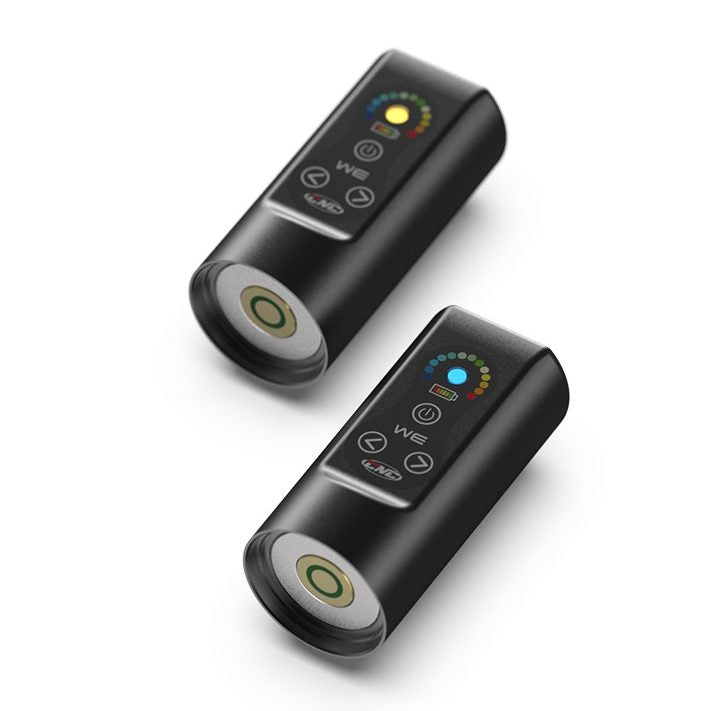

Wireless tattoo pen X-WE is equipped with two PowerBolt for cyclic use and works continuously. The battery uses 900mAh lithium polymer, which has a long life and fast charging speed.

Support work time

3.0hour-9.0hour (Test Results)

13 level control

5.0V-11.0V,
unit 0.5V

Voltage output

5.0V-11.0V.
Default start voltage:7.0V

Charging time

1.5 hour Type-C Fast charge

wireless tattoo pen cnc we 2 batteries pack wireless

Advanced
Drive & Motor

The wireless tattoo machine X-WE is equipped with a special coreless motor-DC for tattoo work. After tests by professional tattoo artists, this tattoo machine performs better adapted to various tattoo types. It is marked with the motors of other professional tattoo machines. It produces a smaller volume when working, improves the working time of the power bolt, and the motor has a longer life.


Wireless Tattoo Pen Parameters


12V
Nominal voltage
6.18 mNm
Nominal torque
10060rpm
No-load speed
DC-motor
Germany Motor
85 %
Max. efficiency
<2.5m2/s
Vibration value

3.5mm
Replaceable Stroke


structure of wireless tattoo machine cnc we

Grip & Needle Depth Adjustment


Easy to Adjust.
The grip supports approximately 300° rotation adjustment, and the depth of the needle changes from 0-4mm in the 300° rotation range. The handle can accurately lock the needle depth.



Retractable cartridge slot
As shown, Figure 1 means that the needle length is 0mm, and this slot protrudes from the grip. Figure 2 The needle length is 4mm,This slot is retracted about 1mm in the grip.

Design For Lightweight & Service


X-WE wireless tattoo pen is designed by POWERCHANNEL GROUP, and the overall shell is made of aviation aluminum. The total weight of the tattoo machine is 176g, and the Powerbolt is only 37.4g. About 80% of the weight is concentrated on the grip, comfortable design.

For better after-sales service, wireless tattoo machine X-WE adopts a segmented design. Divided into: grip section, drive section, power section. During the one-year warranty period, if there is a problem with any section, CNC will send the replacement section to you. You only need to simply replace it. I believe this after-sales program is best for us.

wireless-tattoo-machine-cnc-we-light-weight-design-and-for-best-service

Professional Tattoo Artist's Review

What’re the opinions of Daniel Yuck about the wireless tattoo machine? Let’s see what did he say.

In my opinion this machine is outstanding and for reasons that I demonstrate in this video. I pull really smooth and saturated lines with multiple sizes of needles, I use a pepper like shading, and I have packed black. To me the CNC-WE is a workhorse tattoo machine because pretty much anything can be achieved with correct technique and application. I say the CNC-WE Tattoo Machine is TRULY wireless because there is no place to plug in our power supply. The WE runs off of the power bolts that come with the machine, which also in my opinion are very powerful and can be good depending on setup and application. The CNC-WE is a continuously running machine, for this I feel it’s all person preference.
